A8 DIAMOND PROTON RECOIL TELESCOPE
Fast-Neutron Spectroscopy
The A8 Diamond Proton Recoil Telescope is configured to measure the neutron spectrum in high-energy neutron beams with highest precision. It is used for the neutron beam monitoring in mono-energetic fast neutron beams at Van de Graaff and Tandem accelerators. The detection of fast-neutrons is based on the well known 1H(n,p)n reaction, where the neutron energy is determined by measuring the energy deposited in the Diamond Telescope Detector by proton recoils.
The A8 Diamond Proton Recoil Telescope consists of a B14 Diamond Telescope Detector with four detector stages, four Cx-L Spectroscopic Amplifiers, a ROSY® real-time readout system with integrated power supply for amplifier power and detector bias. Cables and connectors of 1 m length are provided. The web-based GUI provides real-time coincidence spectra and rates for monitoring purposes.
The A8 Diamond Proton Recoil Telescope consists of a B14 Diamond Telescope Detector with four detector stages, four Cx-L Spectroscopic Amplifiers, a ROSY® real-time readout system with integrated power supply for amplifier power and detector bias. Cables and connectors of 1 m length are provided. The web-based GUI provides real-time coincidence spectra and rates for monitoring purposes.
The A8 provides the individual neutron spectra of the 4 telescope sensors
and the coincidence spectrum of the proton recoils in real-time.
and the coincidence spectrum of the proton recoils in real-time.
FEATURES
Detector type:
Diamond Telescope Detector
ΔE-E-sensor thickness:
1 x 50 μm, 3 x 500 μm
Maximum neutron energy:
22 MeV
Energy resolution:
20 keV FWHM
Amplifiers (4 pieces):
Spectroscopic Amplifiers
ADDITIONAL PRODUCT INFORMATION
The principle of neutron detection with the Diamond Proton Recoil Telescope is illustrated in the Figure, for 12-17 MeV neutrons. The proton recoils are collimated to select the forward emitted protons, which carry the full neutron energy. The protons are stopped in the Diamond Telescope and deposit their full energy. The measurement of these coincidences allows to determine the neutron flux as well as the neutron energy.

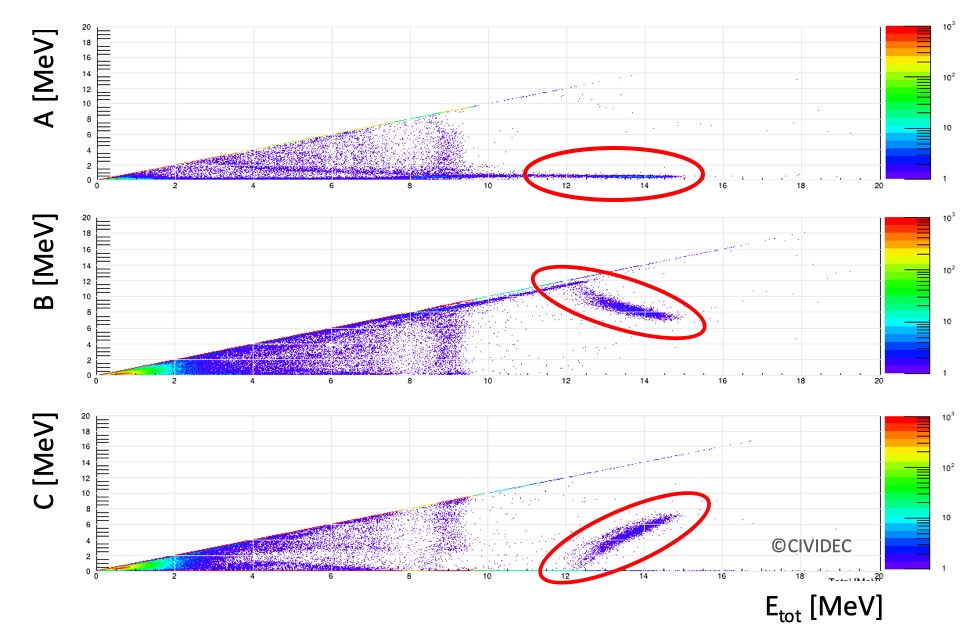

The energy deposited in the first three sensors of the Diamond Proton Recoil Telescope is illustrated in the Figure as function of the total deposited energy in the telescope, for a measurement in a 14.8 MeV neutron beam. The number of counts is encoded in color. The contribution of the proton recoils is indicated for each channel with a red ellipse. The remaining signals correspond to the neutron spectrum in each sensor and background reactions.
In the top panel the measurement with the first, 50 μm thin ΔE diamond sensor is shown. The middle panel shows the second, 500 μm thick diamond sensor, which is traversed as well by the proton recoils. The remaining energy of the proton recoils is deposited in the last sensor, as shown in the bottom panel.
In the top panel the measurement with the first, 50 μm thin ΔE diamond sensor is shown. The middle panel shows the second, 500 μm thick diamond sensor, which is traversed as well by the proton recoils. The remaining energy of the proton recoils is deposited in the last sensor, as shown in the bottom panel.
DOWNLOAD THE PRODUCT INFORMATION
A8 Diamond Proton Recoil Telescope
RELEVANT PROJECTS
Telescope for neutron beam monitoring at EC-JRC
The Diamond Proton Recoil Telescope was developed in collaboration with EC-JRC, Geel/Belgium, for neutron beam monitoring at the mono-energetic neutron beam lines of the new Van de Graaff accelerator.
