Cx-L SPECTROSCOPIC AMPLIFIER
Spectroscopy with long Cables,
integrated Bias-Tee
integrated Bias-Tee
The Cx-L Spectroscopic Amplifier is an ultra low-noise charge amplifier with a shaping output stage. The Cx-L is designed for applications where long detector cables can be connected between detector and amplifier. This amplifier is escpecially suited for spectroscopic detector applications under vacuum or in a cryostat.
The Cx-L is ideal for precision spectroscopy with high capacitive input loads.
FEATURES
Type:
Charge amplifier with shaper
Max. capacitive input load:
1 nF

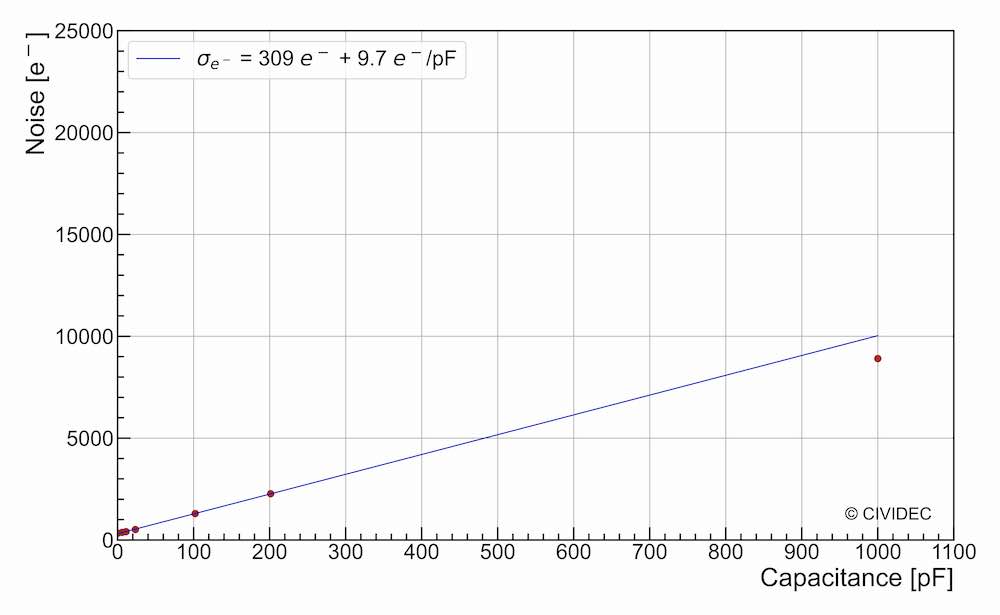

ENC noise:
300 + 10/pF electrons
Pulse shape:
Gaussian signal with 180 ns FWHM
Bias-Tee:
Included
OPTIONS
The Cx-L Spectroscopic Amplifier can be adapted to specific applications:
- Gaussian pulse shape with FWHM = 1.2 μs for the usage with conventional multi-channel analyzers (MCA).
ADDITIONAL PRODUCT INFORMATION
The Cx-L Spectroscopic Amplifier has a Gaussian output signal with 180 ns FWHM. The low baseline noise of 300 electrons allows high-resolution particle spectroscopy, in particular for high particle rates up to 1 MHz.
The width of the Gaussian output signal can be customized for the readout with a conventional multi channel analyzer to 1.2 μs FWHM.
The width of the Gaussian output signal can be customized for the readout with a conventional multi channel analyzer to 1.2 μs FWHM.
The Cx-L Spectroscopic Amplifier is an inverting, unipolar charge amplifier with a linear output range of +2V. The excellent linearity of the amplifier shows a gain of 12.5 mV/fC.
The linear input range of 180 fC covers a dynamic range of 15 MeV energy deposition in diamond. The gain of the amplifier can be customized on demand.
The linear input range of 180 fC covers a dynamic range of 15 MeV energy deposition in diamond. The gain of the amplifier can be customized on demand.
The Cx-L Spectroscopic Amplifier is optimized for particle spectroscopy with high capacitive input load. The signal-to-noise ration (SNR) for 1 MeV energy deposition in diamond detectors, as function of the input capacitance is shown in the Figure.
At 1 nF input capacitance an SNR of 10 is achieved for 1 MeV equivalent energy deposition in diamond. This shows that the Cx-L Spectroscopic Amplifier can be operated with 10 m long 50 Ω cables at the input.
At 1 nF input capacitance an SNR of 10 is achieved for 1 MeV equivalent energy deposition in diamond. This shows that the Cx-L Spectroscopic Amplifier can be operated with 10 m long 50 Ω cables at the input.
